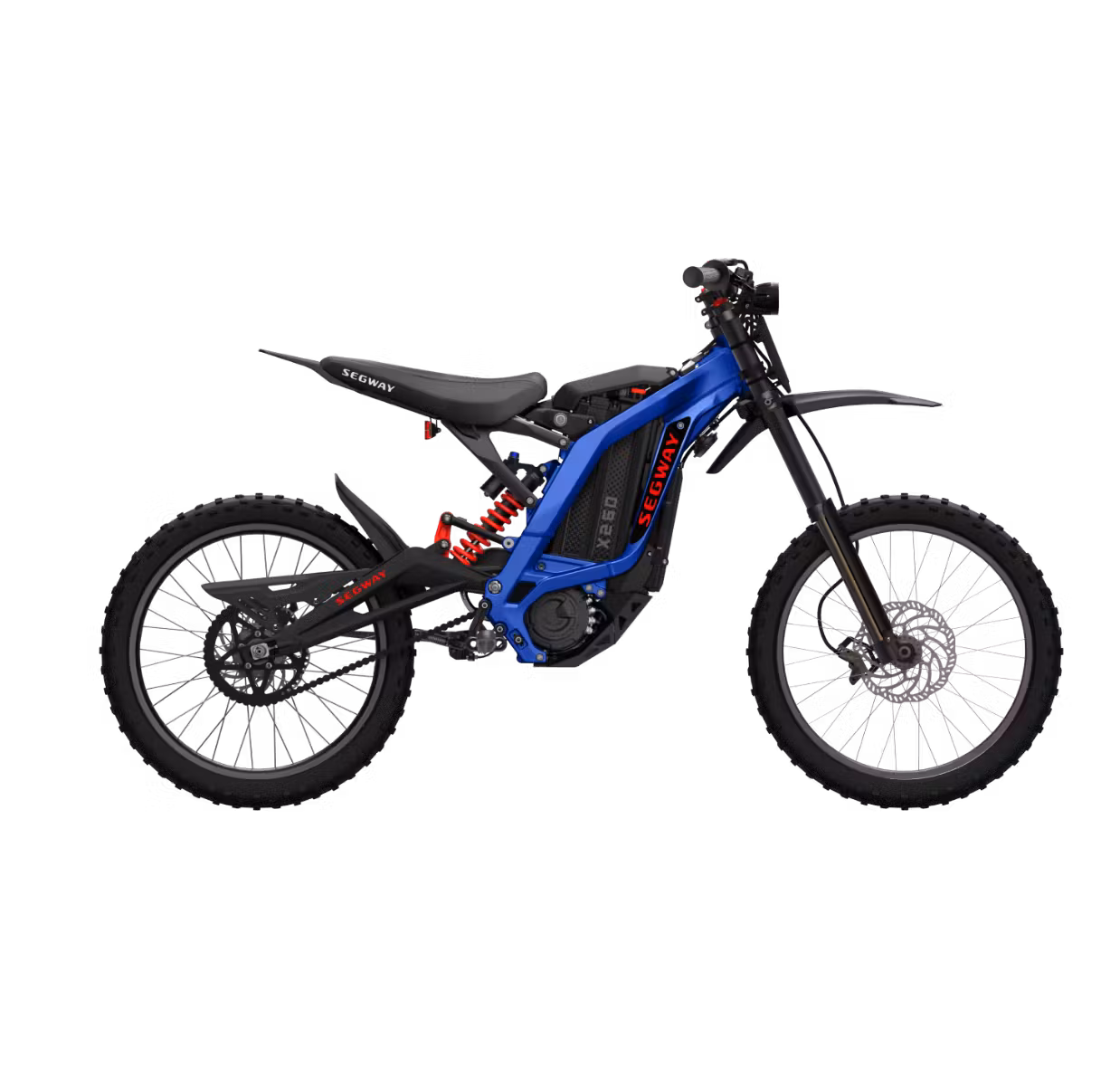

Segway Dirt eBike X260

Description

Segway specifications

Dimensions: Length × Width × Height	74.2 × 30.7 × 41.3 inch (1885 × 780 × 1050 mm)
Vehicle Weight/ Including Battery	97.0 / 121.3 lbs (44 / 55 kg)
Rider	Payload	Max. 220.5 lbs (100 kg)
Rider	Age	18–55 yrs.
Vehicle Parameters	Wheelbase	49.8 inch (1265 mm)
	Minimum Clearance	10.6 inch (270 mm)
	Max. Climbing	45° slope
	Max. Speed	46.6 mph (75 km/h)
	Range	74.6 mile (120 km)
	Seat Height	31.9 inch (810 mm)
	Power System	High speed brushless DC motor
	Max. Motor Power	5 kW
	Max. Torque for Drive Whee	184.3 ftlb (250 Nm)
	IP Rating	Battery IP65; Controller IP67
	Vehicle Material	Forged Aluminum Alloy
Battery	Battery Type	Lithium battery
	Charging Time	3–4 h
	Capacity	32 Ah
	Rated Voltage	60 V
	Nominal Power	3 kW
	Overcurrent Protection Value	100 A
Charger	Nominal Power	700 W
	Charger Input Voltage	100–240 V 50–60 HZ
	Charger Output Voltage/ Power	67.2 V / 10 A
	Charger Model	NB-67D2-10D0
Other Features	Gear Type	Aluminum alloy 19*1.4
	Tire Type	70/100-19 off-road tire
	Wheel Diameter	19 inch
	Handlebar Grip Material	Silicone rubber
	Front Shock Absorber System	Double-shoulder inverted front fork (adjustable)
	Rear Shock Absorber System	Multi-link hydraulic spring central type
	Rear Shock Absorber Range	3.3 inch (85 mm adjustable)
	Brake System	Disc brake
	Primary Drive System	HTD 8M belt 22.0 inch (560 mm)
	Secondary Drive System	420 chain with 106 sections
